Convertizor de frecventa

0 Recenzie(i)
COD: 500114

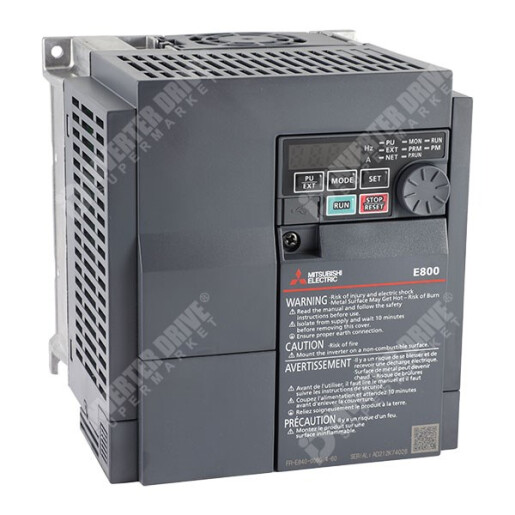

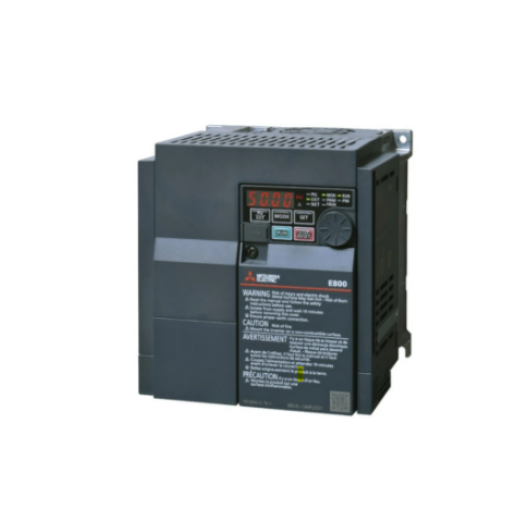

Convertizor frecventa FR-E800; Pn=3.7/5.5kW, In=9.5/11.1A regim suprasarcina ND/LD; clasa 400V Uin=3x380-480V 50/60Hz; Uout=3x(0V...Uin) 0.2-590Hz; RS-485, 500m, MC protocol, MODBUS/RTU; terminal AM -10...+10V; SIL2/PLd logica source; acoperire PCB conform IEC60721-3-3 clasa 3C2; control IM± functie PLC; USB device mini B; dimensiuni: 140x150x135mm (HxVxD); greutate: 1.8kg; grad protectie IP20; Nota: regim ND = 150% 60s, 200% 3s la 50°C; regim LD = 120% 60s, 150% 3s la 50°C;
Fără TVA: 3.400,00 RON Cu TVA: 4.114,00 RON
Adauga in cos
sau

În Stoc

Descriere

Convertizor frecventa FR-E800; Pn=3.7/5.5kW, In=9.5/11.1A regim suprasarcina ND/LD; clasa
400V Uin=3x380-480V 50/60Hz; Uout=3x(0V...Uin) 0.2-590Hz; RS-485, 500m, MC protocol,
MODBUS/RTU; terminal AM -10...+10V; SIL2/PLd logica source; acoperire PCB conform
IEC60721-3-3 clasa 3C2; control IM± functie PLC; USB device mini B; dimensiuni:
140x150x135mm (HxVxD); greutate: 1.8kg; grad protectie IP20; Nota: regim ND = 150% 60s,
200% 3s la 50°C; regim LD = 120% 60s, 150% 3s la 50°C;



     Informaţii

    General

    Cod produs 500114
